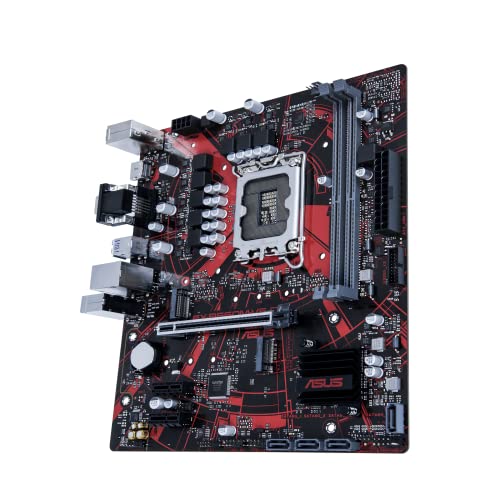

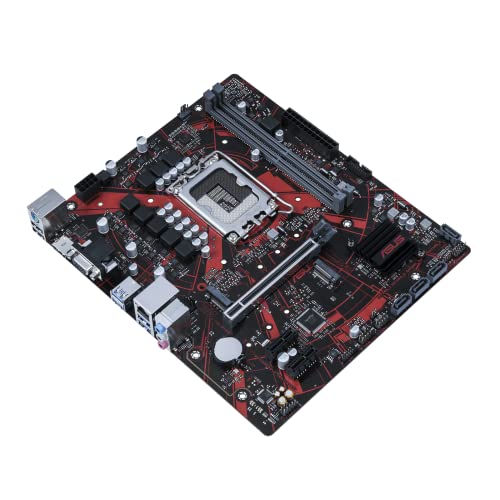

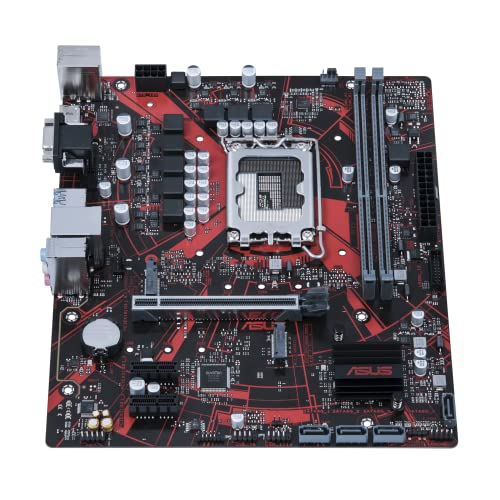

ASUS EX-B660M-V5 D4 mATX motherboard is designed to support latest 12th Gen Intel CPU’s with LGA 1700 socket, Pentium Gold and Celeron Processors with B660 Intel Chipset.
The board is built with PCIe 5.0 Ready supporting 2 x DIMM, up to 64GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
Equipped with the next-gen Turbo boost max technology of PCIe 4.0, Two M.2 slots(PCIe 4.0), Realtek 1Gb Ethernet Four USB 3.2 Gen 1 Type-A, Two USB 2.0 Type-A, Front panel USB 3.2 Gen 1, Two USB 2.0, Four SATA 6Gb/s, HDMI, DP support.
Comes with most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, PCH heatsink and hybrid fan headers. We adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.

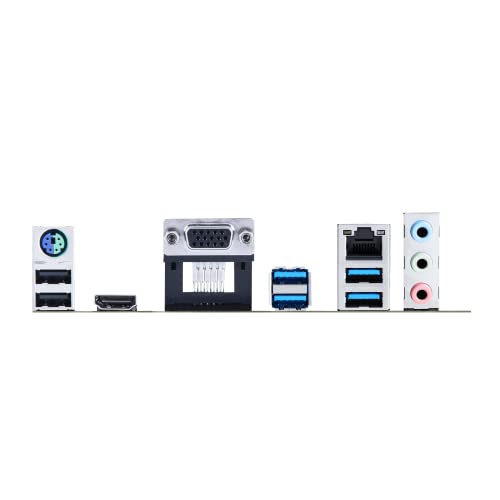

EX-B660M-V5 D4 programmed with Q-LED Core display, that produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard.
Specification: ASUS EX-B660M-V5 D4 Intel B660 (LGA1700) mATX Motherboard with PCIe 4.0 Slot, DDR4, 1GB Ethernet, Two M.2 Slots, HDMI, D-Sub
Brand
ASUS
Memory Technology
DDR4
Series
EX-B660M-V5 D4
Colour
B660
Item Height
50 Millimeters
Item Width
26 Centimeters
Product Dimensions
26 x 26 x 5 cm, 1 Kilograms
Item model number
EX-B660M-V5 D4
Processor Type
Pentium
Processor Socket
LGA 1700
Manufacturer
Asus
Maximum Memory Supported
64 GB
Computer Memory Type
DIMM
Memory Clock Speed
5333 MHz
Graphics Card Interface
PCI Express
Connectivity Type
Wi-Fi
Number of USB 2.0 Ports
4
Number of HDMI Ports
1
Number of Ethernet Ports
1
Included Components
2 x SATA 6Gb/s cables, 1 x I/O Shield, 2 x M.2 Anchors, 1 x Support DVD, 1 x User guide
Country of Origin
China
Item Weight
1 kg
